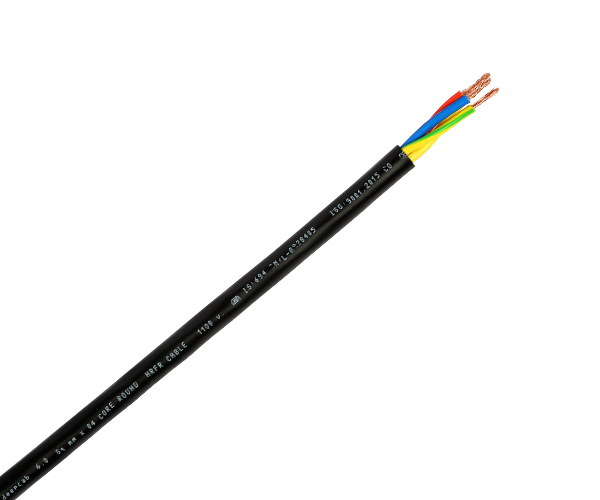

Round Multicore Flexible Cable
Features
- Cable for high power use
- Overall Mylar tape wrapping over cores improving Dielectric strength of the cable
- Fine high quality copper strands of small cross section provide better reliable data transmission
- High flexibility and low bending radius by using special PVC compound
Applications
- Power cords
- High power appliances
- Machine tools & eqipments used in heat zones
- Electronic scales and weighing machines
Construction
- Fine conductor strands of ABC - Annealed Bare Copper
- PVC based core insulation
- Cores laid up in layers with Overall Mylar tape wrapping
- Sheathing of special PVC based compound
Technical Specification
Rated voltage:
450/750 V
In Accordance to :
IS:694
Temperature range :
-20 C to +70 C
| Cross Sectional Area of Conductor (Nom.) (sq mm) | Number / Dia of Conductor Strands (Nom.) (No. / mm) | No. of Cores (No.) | Overall Dimensions (App.) W × H (mm) |
|---|---|---|---|
| ~0.22 | 14/0.15 | 2 | 3.4 × 5.5 |
| 0.5 | 16/0.196 | 2 | 4.2 × 6.5 |
| 0.75 | 24/0.196 | 2 | 4.2 × 6.5 |
| 1 | 32/0.20 | 2 | 8.0 × 5.4 |
| 1.5 | 30/0.25 | 2 | 8.6 × 5.5 |
| 2.5 | 36/0.30 | 2 | 10.5 × 6.6 |
| 4 | 56/0.30 | 2 | 12.0 × 7.4 |
| 6 | 84/0.30 | 2 | 13.0 × 8.0 |
| 10 | 140/0.30 | 2 | 16.0 × 9.6 |
| 16 | 126/0.40 | 2 | 18.5 × 11.0 |
- The number and diameter of conductor strands are for reference only.
- The above data is only indicative and may be revised without prior intimation.
