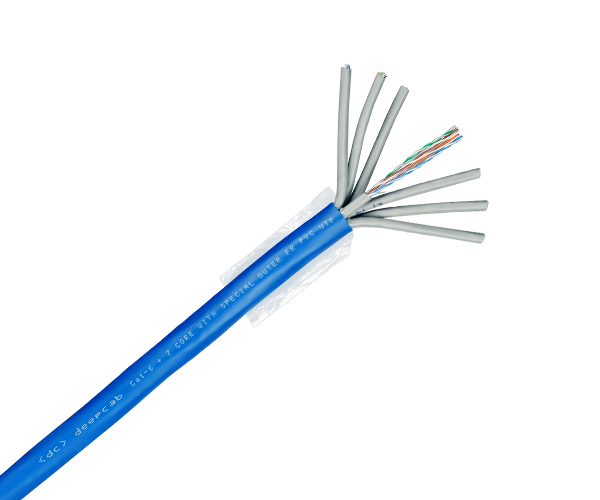

Cat Snake Cable
Features
- Excellent transmission over twisted pairs
- Central separator spline reduces crosstalk for improved audio integrity.
- Rugged construction suitable for demanding stage and studio environments
Applications
- Perfect for live sound and stage setups requiring multi-channel audio connections.
- Suitable for broadcast and studio environments for clear audio, video, or data routing.
- Ideal for theatrical, conference, and event installations where organized, durable cabling is essential.
Construction
- Solid (generally) / Fine conductor strands of ABC - Annealed Bare Copper
- Four twisted pairs of high quality Polyethylene insulation separated with a spline and PVC based inner sheath forming a channel
- Multiple channels laid up in layers with overall Mylar tape wrapping and outer sheathing of special PVC based compound
Technical Specification
Dielectric Strength :
1/1 DC kV/min
Rated voltage:
300 V RMS
Core Identification :
| Wire 1 | Wire 2 | |
|---|---|---|
| Pair 1 | White - Orange Stripe | Orange |
| Pair 2 | White - Green Stripe | Green |
| Pair 3 | White - Blue Stripe | Blue |
| Pair 4 | White - Brown Stripe | Brown |
| No. of Channels | Approx overall Dia |
|---|---|
| (No.) | (mm) |
| 4 | 17 |
| 7 | 20 |
| 8 | 23 |
| 12 | 27 |
- The number and diameter of conductor strands are for reference only.
- The above data is only indicative and may be revised without prior intimation.
