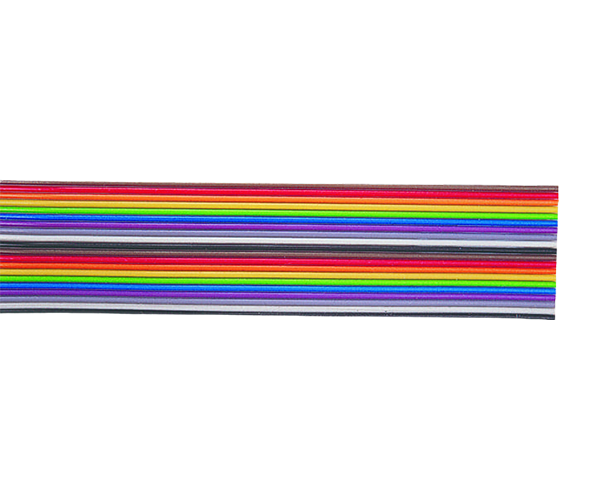

Ribbon Flat Cable
Features
- Lightweight and flexible, allowing for use in tight spaces
- High flexibility and low bending radius by using special PVC compound
Applications
- Internal wiring of computers and data processing equipments
- Harness fabrication & automotives
Construction
- Fine conductor strands of ATC - Annealed Tinned Copper
- Insulation of special PVC based compound
Technical Specification
Mutual Capacitance :
C/C Max 50 pf/m
Insulation Resistance :
> 20 MOhm x Km
Conductor Resistance :
See Chart Deepcab Flexible wire
In Accordance to :
IS:694, EN 50288
Core Identification :
As per colour code chart as per dc deepcab colour code chart
Test Voltage :
AC 1100 V
Rate Voltage
250 V
Temperature Range :
static -15 C to +70 C
| Cores - 2 to 10 | ||||
|---|---|---|---|---|
| No. of Strands / Size | Dia of Conductor Strands (Nom.) | Dia of Conductor Strands (Nom.) | Overall Diameter (Nom.) | Current Rating AC |
| (No. / SWG) | (inch) | (mm) | (mm) | (Ampere) |
| 7/40 | 0.0048 | 0.122 | 1.20 | 0.25 |
| 7/38 | 0.0060 | 0.152 | 1.30 | 1.0 |
| 7/36 | 0.0076 | 0.193 | 1.35 | 1.5 |
| 14/38 | 0.0060 | 0.152 | 1.80 | 2.0 |
| 14/36 | 0.0076 | 0.193 | 1.90 | 3.0 |
- The number and diameter of conductor strands are for reference only.
- The above data is only indicative and may be revised without prior intimation.
