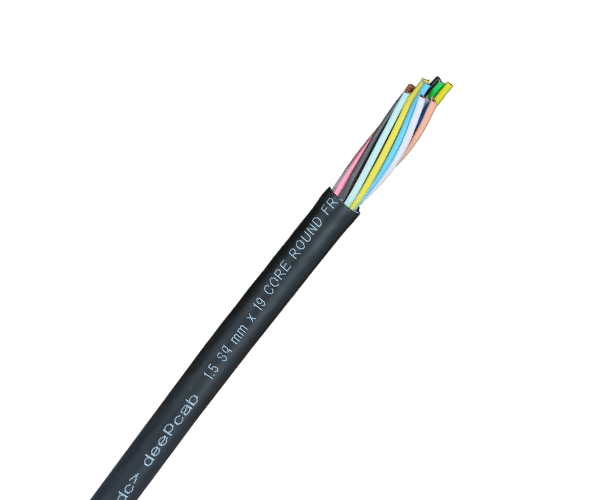

Multicore Stage Lighting Cable
Features
- Cable for low frequency transmission
- Fine high quality copper strands of small cross section provide better reliable data transmission
- High flexibility and low bending radius by using special PVC compound
Applications
- In concerts and events for Stage lightings, PA systems, Video walls
- Power distribution for professional film lighting (HMI, LED, Tungsten) and generators
- Multi-circuit looms carrying power for several fixtures
Construction
- Fine conductor strands of ABC - Annealed Bare Copper
- PVC based core insulation
- Sheathing of special PVC based compound
Technical Specification
Mutual Capacitance :
C/C Max 200 pf/m
Inductance Max :
Approx 1.25 mH/ km
Insulation Resistance :
> 20 MOhm x Km
Conductor Resistance :
As per conductor resistance chart
In Accordance to :
IS:694, EN 50288
Core Identification :
As per colour code chart
Test Voltage :
AC 1100 V
Rated voltage:
250 V
Temperature Range :
-15 C to +70 C
ATC Round Multicore Cable
| No. of Cores | Approx Overall Dia |
|---|---|
| (No.) | (mm) |
| 22/0.3 mm (1.5 sq mm - 16 AWG) | |
| 2 | 7.1 |
| 3 | 7.5 |
| 4 | 8.3 |
| 6 | 10.7 |
| 8 | 11.0 |
| 10 | 12.6 |
| 12 | 13.5 |
| 16 | 14.6 |
| 20 | 16.2 |
| 24 | 18.2 |
| 36/0.3 mm (2.5 sq mm - 14 AWG) | |
| 2 | 8.5 |
| 3 | 8.8 |
| 4 | 10.1 |
| 6 | 12.2 |
| 8 | 13.2 |
| 10 | 15.4 |
| 12 | 15.9 |
| 16 | 17.8 |
| 20 | 19.8 |
| 24 | 22.2 |
| No. of Cores | Approx Overall Dia |
|---|---|
| (No.) | (mm) |
| 56/0.3 mm (4.0 sq mm - 12 AWG) | |
| 2 | 9.9 |
| 3 | 10.8 |
| 4 | 12.4 |
| 5 | 13.5 |
| 84/0.3 mm (6.0 sq mm - 10 AWG) | |
| 2 | 12.0 |
| 3 | 12.3 |
| 4 | 14.1 |
| 5 | 13.5 |
| 140/0.3 mm (10.0 sq mm - 8 AWG) | |
| 2 | 15.0 |
| 3 | 15.5 |
| 4 | 17.0 |
| 4C + Earth | 18.5 |
| 224/0.3 mm (16.0 sq mm - 6 AWG) | |
| 4 | 21.0 |
| 4C + Earth | 21.0 |
- The number and diameter of conductor strands are for reference only.
- The above data is indicative and may be revised without prior intimation.
