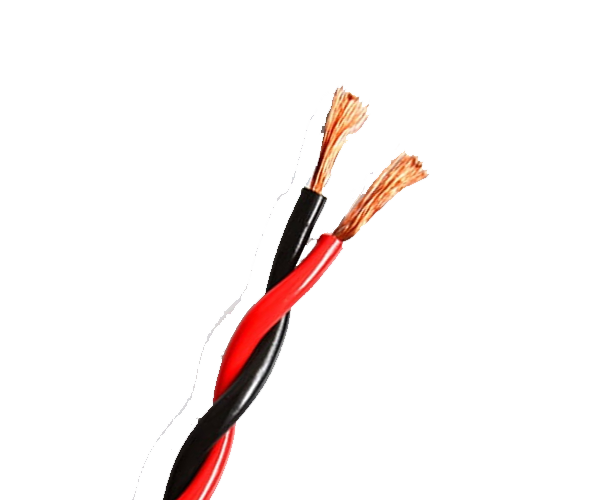

Twin Twisted Flexible Wire
Features
- High conductivity using fine copper strands
- Twisted pairs to negate signal interference
- High flexibility and low bending radius by using special PVC compound
Applications
- Audio signal wiring in home and professional sound systems
- Interconnection cables for electronic devices and control panels
- Flexible wiring in automotive and industrial equipment
Construction
- Fine conductor strands of ATC - Annealed Tinned Copper
- Insulation of special PVC based compound
- Two round cores twisted together to form a pair
| Number / Dia of Conductor Strands (Nom.) | Dia of Conductor Strands (Nom.) | Overall Diameter (Nom.) | Current Rating AC |
|---|---|---|---|
| (No. / SWG) | (inch) | (mm) | (Ampere) |
| 14/40 | 0.0048 | 1.0 | |
| 23/40 | 0.0048 | 2.0 | |
| 40/40 | 0.0048 | 4.0 |
- The number and diameter of conductor strands are for reference only.
- The above data is only indicative and may be revised without prior intimation.
