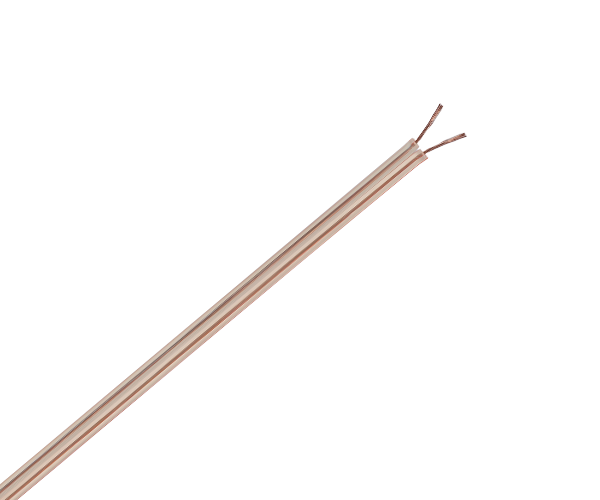

Twin Parallel Transparent Speaker Cable
Features
- Superior electrical conductivity using high purity copper
- Dual-core parallel conductor design for balanced signal transmission
- Colour stripe on insulation for easy polarity identification
- Flexible design enabling easy installation in confined spaces
Applications
- Home audio and home theater speaker connections
- Professional sound reinforcement systems
- Fixed installation in commercial sound environments
- Multi-room and distributed audio setups
Construction
- Fine conductor strands of ABC - Annealed Bare Copper
- PVC based core insulation
- Two round cores arranged parallelly in a flat configuration
- One core marked with coloured stripe along the length
Technical Specification
Conductor Resistance :
As per conductor resistance chart
Core Identification :
As per colour code chart
Test Voltage :
AC 1100 V
Working Voltage (not for power current prupose):
250 V
Temperature Range :
static -15 C to +70 C
| Number / Dia of Conductor Strands (Nom.) |
|---|
| (No. / inch) |
| 14/0.0060 |
| 14/0.0076 |
| 23/0.0060 |
| 23/0.0076 |
| Number / Dia of Conductor Strands (Nom.) |
|---|
| (No. / inch) |
| 40/0.0060 |
| 40/0.0076 |
| 70/0.0060 |
| 70/0.0076 |
- The number and diameter of conductor strands are for reference only.
- The above data is only indicative and may be revised without prior intimation.
