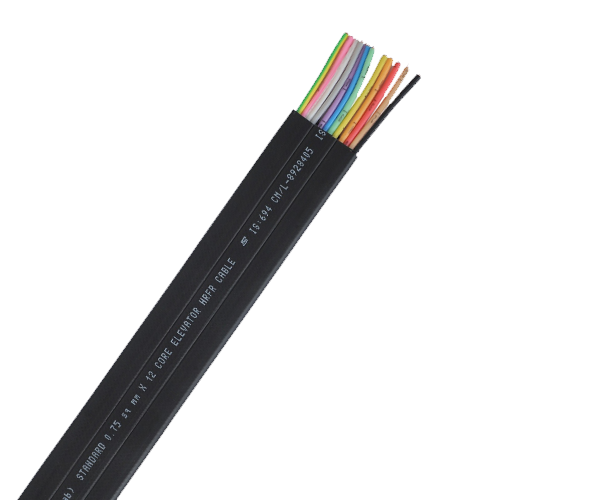

Traveling Cable for Elevator
Elevolt is the top supplier of elevator travelling cables. We have been in this industry for many years now, having built a reputable name by providing excellent quality wires and cables. Our Traveling Cable for Elevator is made with robust properties so that it can withstand various challenging conditions. These cables are crucial in driving the lift or elevator cars safely, so we maintain the highest quality standards and prioritize safety by paying close attention to details. We make flat cables with multi core conductors wrapped in an insulating sheath. The cores are insulated, and the cables are flat because flat cable has more advantages than the round ones. As a wire and cable manufacturing brand, we believe in supplying our customers with flawless quality products. Safety and performance are our top priority. While we maintain stringent manufacturing policies, our team is highly skilled to accomplish the projects at a great pace.
It helps us achieve the results in one-third of the time of the industry standards. We are a reliable partner for the construction businesses involved in traveling cable for elevator for residential places, commercial complexes, office buildings, research and development centers, bridges and railway stations. To cater to these diverse applications, we provide them in different cross section, cores and current ratings.
Features of Our Traveling Cable for Elevator
We ensure our traveling cable for elevator delivers long-lasting performance in whichever condition they are installed in. They can handle continuous to and fro movement along the building or architectural structure. Here are the features of these cables:
- Made of annealed bare copper with high conductivity and corrosion resistance.
- The conductor cores are insulated with PVC to avoid accidental contact between the cores.
- An outer sheath of PVC ensures all the cores are wrapped in well insulated assembly.
- Maintains torsional balance to prevent twist and swaying, which is essential in power and signal transmission.
- Used for power and signal transfer between various components of the elevator car.
- The sheath has flame retardant and corrosion resistance properties.
- Flat cable design reduces the space occupation.
- Heat is dissipated more efficiently through the flat surfaces.
Our traveling cable for elevator is designed and fabricated with great manufacturing standards. This can be backed by the fact that we are certified globally by UL, CE, RoHS, EN 50288, and PAS 5308. Besides, ISO and BIS have also recognized our high standard of manufacturing. Our range includes conductors with cross sectional area from 0.5- 0.75 sq. mm, 4- 300 cores with AC current capacity of 7-35 Amp. These multiple configurations make our cables suitable for many places.
Choose Us
If you are a construction business owner or a builder looking for traveling cable for elevator, choose Elevolt. Our huge range is available at an affordable price. We export our wires and cables beyond the border also, adhering to the relevant compliances and regulations. By choosing us, you get tailored solutions in the form of an elevator traveling cable. Reach out to our support team to discuss your specific needs.
Technical Specification
Mutual Capacitance :
C/C Maxi. 200 pf/m
Inductance Maxi. :
Approx 1.25 mH/ km
Insulation Resistance :
> 20 MOhm x Km
Conductor Resistance :
As per deepcab flexible wire chart
In Accordance to :
IS:694 BS 5308: Part 2, Type: 1
Core Identification :
Cores are colour coded as per deepcab colour code chart
Test Voltage :
1200 V
Working Voltage (not for power current prupose):
250 V
Temperature Range :
static -15 C to +70 C

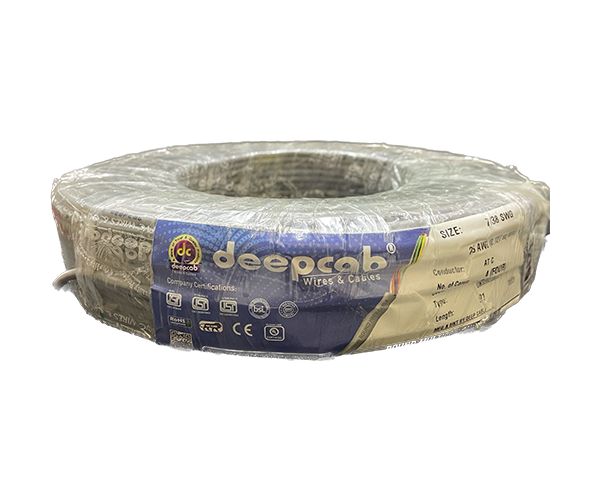

ATC Round Multicore Cable
| No. of Cores | Overall Dia (App.) |
|---|---|
| (No.) | (mm) |
| 7/38 SWG (0.125 sq mm - 26 AWG) | |
| 2 | 3.3 |
| 3 | 3.7 |
| 4 | 4.2 |
| 5 | 4.4 |
| 6 | 5.0 |
| 8 | 5.7 |
| 10 | 6.1 |
| 12 | 6.5 |
| 16 | 7.3 |
| 20 | 8.0 |
| 25 | 8.8 |
| 40 | 10.9 |
| 50 | 11.8 |
| No. of Cores | Overall Dia (App.) |
|---|---|
| (No.) | (mm) |
| 14/38 SWG (0.25 sq mm - 23 AWG) | |
| 2 | 4.0 |
| 3 | 4.2 |
| 4 | 5.2 |
| 5 | 5.6 |
| 6 | 5.7 |
| 8 | 6.5 |
| 10 | 6.9 |
| 12 | 7.9 |
| 16 | 8.4 |
| 20 | 9.5 |
| 25 | 10.8 |
| 40 | 11.8 |
| 50 | 13.4 |
ABC Round Multicore Cable
| No. of Cores | Overall Dia (App.) |
|---|---|
| (No.) | (mm) |
| 16/0.2 mm (0.5 sq mm - 20 AWG) | |
| 2 | 5.7 |
| 3 | 6.0 |
| 4 | 6.4 |
| 6 | 7.3 |
| 8 | 8.1 |
| 10 | 8.7 |
| 12 | 9.7 |
| 16 | 11.2 |
| 20 | 12.6 |
| 24 | 14.0 |
| 24/0.2 mm (0.75 sq mm - 18 AWG) | |
| 2 | 6.2 |
| 3 | 6.4 |
| 4 | 7.5 |
| 6 | 8.3 |
| 8 | 9.1 |
| 10 | 10.6 |
| 12 | 10.9 |
| 16 | 12.3 |
| 20 | 13.5 |
| 24 | 15.2 |
| 14/0.3 mm (1 sq mm - 17 AWG) | |
| 2 | 6.7 |
| 3 | 6.9 |
| 4 | 7.6 |
| 6 | 9.3 |
| 8 | 10.8 |
| 10 | 11.0 |
| 12 | 11.6 |
| 16 | 13.2 |
| 20 | 14.6 |
| 24 | 16.4 |
| No. of Cores | Overall Dia (App.) |
|---|---|
| (No.) | (mm) |
| 22/0.3 mm (1.5 sq mm - 16 AWG) | |
| 2 | 7.1 |
| 3 | 7.5 |
| 4 | 8.3 |
| 6 | 10.7 |
| 8 | 11.0 |
| 10 | 12.6 |
| 12 | 13.5 |
| 16 | 14.6 |
| 20 | 16.2 |
| 24 | 18.2 |
| 36/0.3 mm (2.5 sq mm - 14 AWG) | |
| 2 | 8.5 |
| 3 | 8.8 |
| 4 | 10.1 |
| 6 | 12.2 |
| 8 | 13.2 |
| 10 | 15.4 |
| 12 | 15.9 |
| 16 | 17.8 |
| 20 | 19.8 |
| 24 | 22.2 |
