Speciality

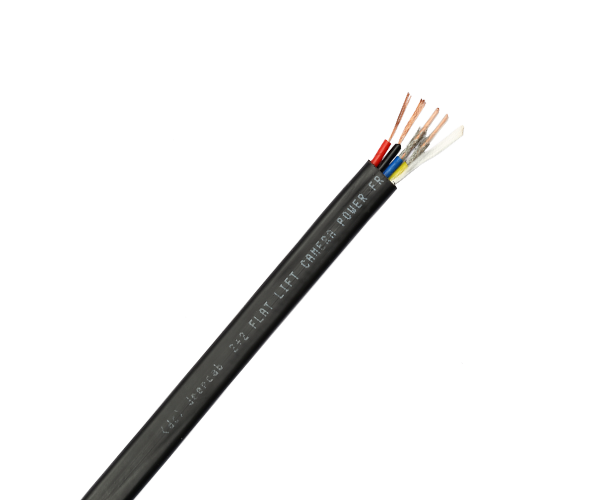

Elevator Cable
Features
- Excellent durability and flexibilty as travelling cable for elevators
- Resistant to moisture, abrasion, grease and oil
- High flexibility and low bending radius by using special PVC compound
Applications
- Power transmission in elevators
- Camera in elevator
- Communication between controller and elevator cabin
Construction
- Fine conductor strands of ABC - Annealed Bare Copper
- Insulation of special PVC based compound
- Sheathing of special PVC based compound with cores laid parallelly
Technical Specification
Test voltage :
2000 V AC
Rated voltage:
450/700 V
Core Identification :
1 Core Yellow with green stripe & rest numbered in same colour
| Cross Sectional Area of Conductor (Nom.) | No. of Cores | Current Rating |
|---|---|---|
| (Sq mm) | (No.) | (Ampere) |
| 0.50 | 4 | 7 |
| 0.50 | 12 | 14 |
| 0.50 | 16 | 16 |
| 0.50 | 18 | 18 |
| 0.50 | 24 | 22 |
| 0.75 | 4 | 11 |
| 0.75 | 12 | 20 |
| 0.75 | 16 | 24 |
| 0.75 | 18 | 26 |
| 0.75 | 24 | 30 |
| 0.75 | 30 | 35 |
- The number and diameter of conductor strands are for reference only.
- The above data is only indicative and may be revised without prior intimation.
